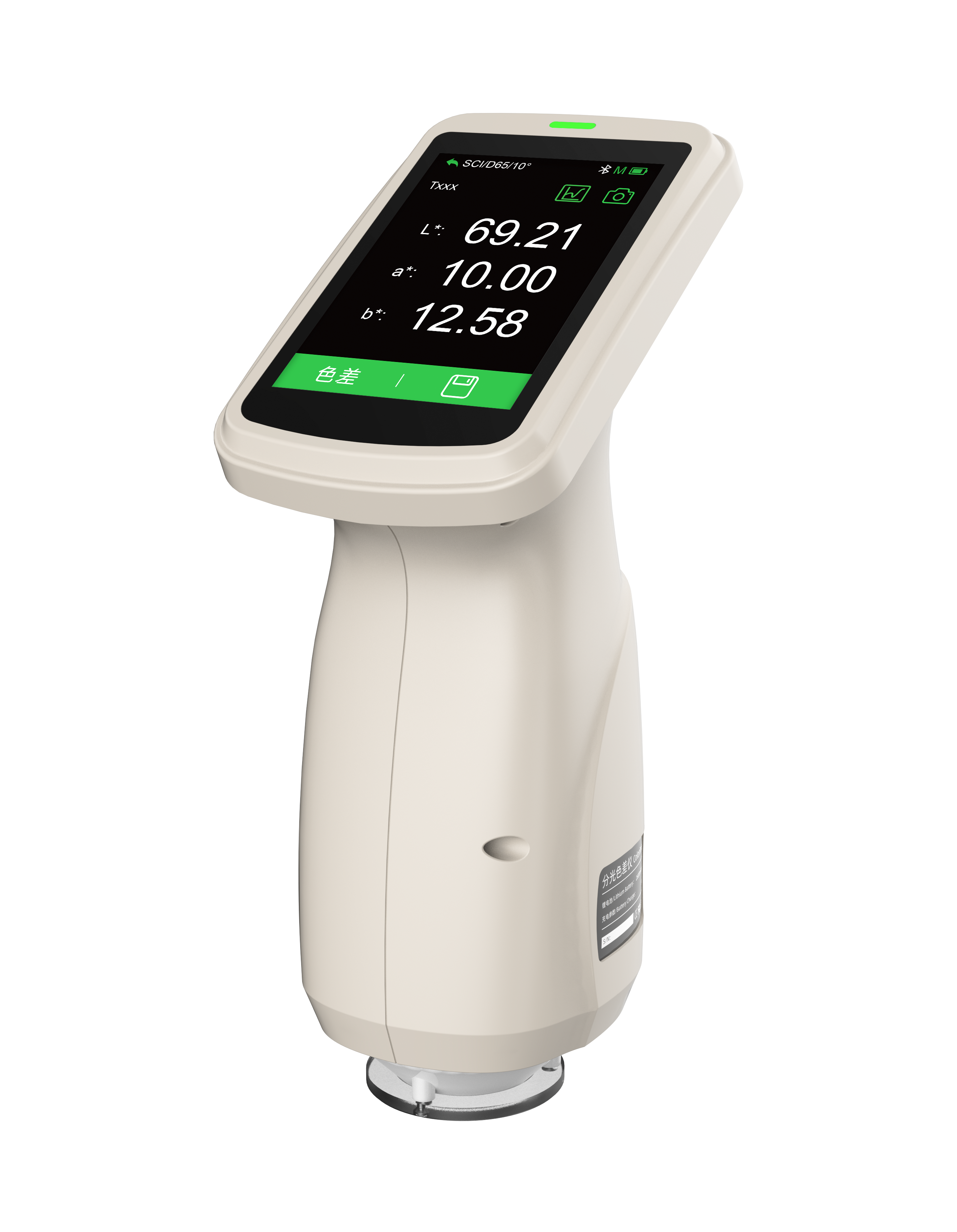

DS‑173 Portable D/8‑SCI Spectrophotometer | UV‑Switchable Color Difference Meter for Industrial Color QC
CHNSpec DS‑173 portable D/8‑SCI spectrophotometer with switchable UV and Φ11mm aperture measures color difference, whiteness and yellowness for regular & fluorescent samples, supporting PC data analysis.
Home Product Color measurement Spectral Colorimeter... DS‑173 Portable D/8‑...

  • The DS-173 utilizes the internationally standard D/8 SCI measurement geometry. It is suitable for regular color measurement and color difference quality control across materials such as plastics, coatings, inks, printing, textiles, leather, ceramics, stone, and paper.


    The instrument is equipped with a full-band balanced LED light source along with a UV light source that can be independently turned on or off. For regular samples, it can measure metrics such as color, color difference, whiteness, yellowness, blackness, color density, and opacity. For samples containing fluorescent whitening agents or fluorescent pigments, users can further analyze the impact of fluorescent components on color by comparing data gathered when the UV light source is turned on versus off.


    Combined with a Φ11mm aperture, various standard illuminants, 2°/10° standard observers, standalone color matching capabilities, and dedicated software, the device seamlessly handles everything from rapid on-site quality inspection to professional color data management.

    Download literature

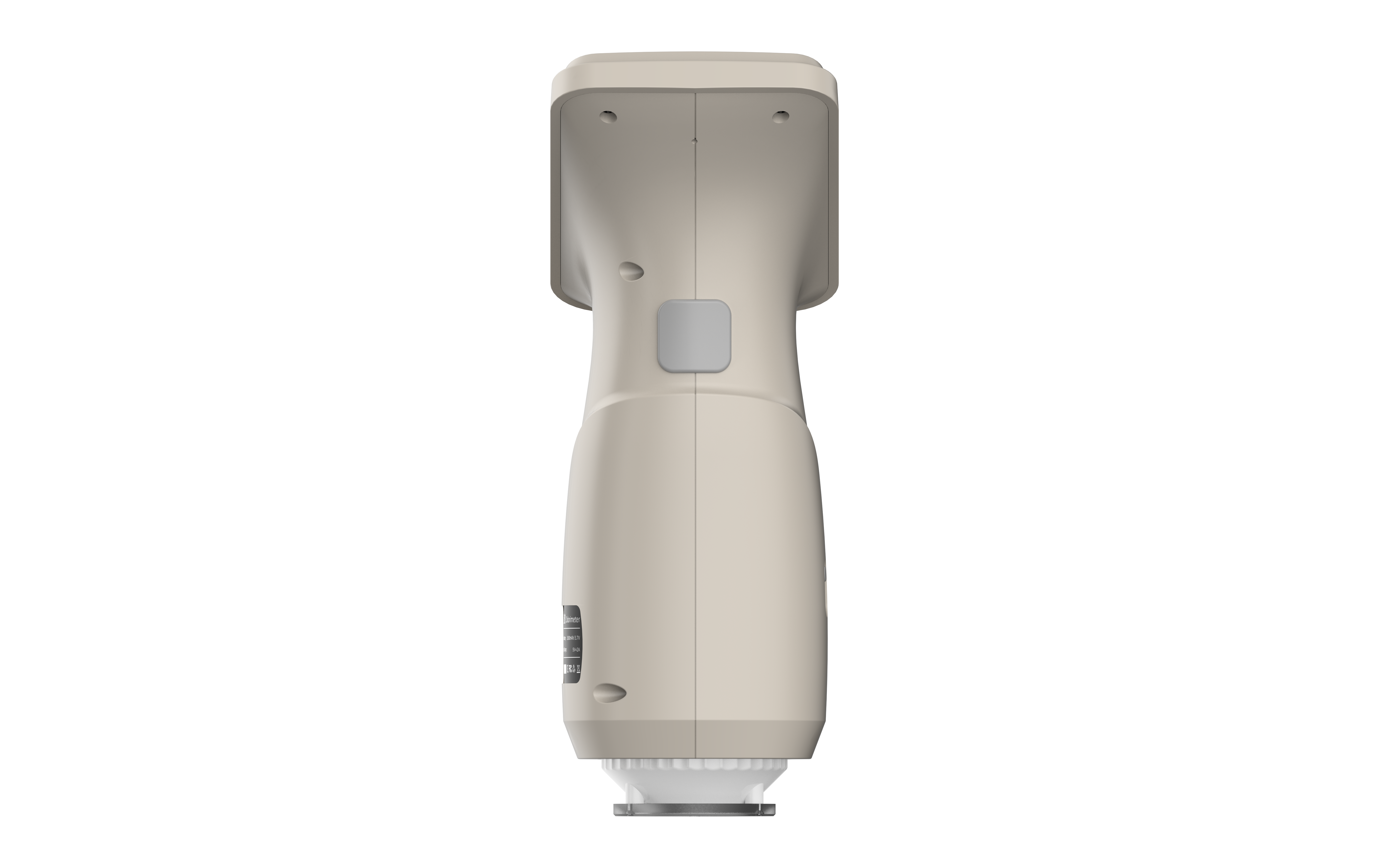

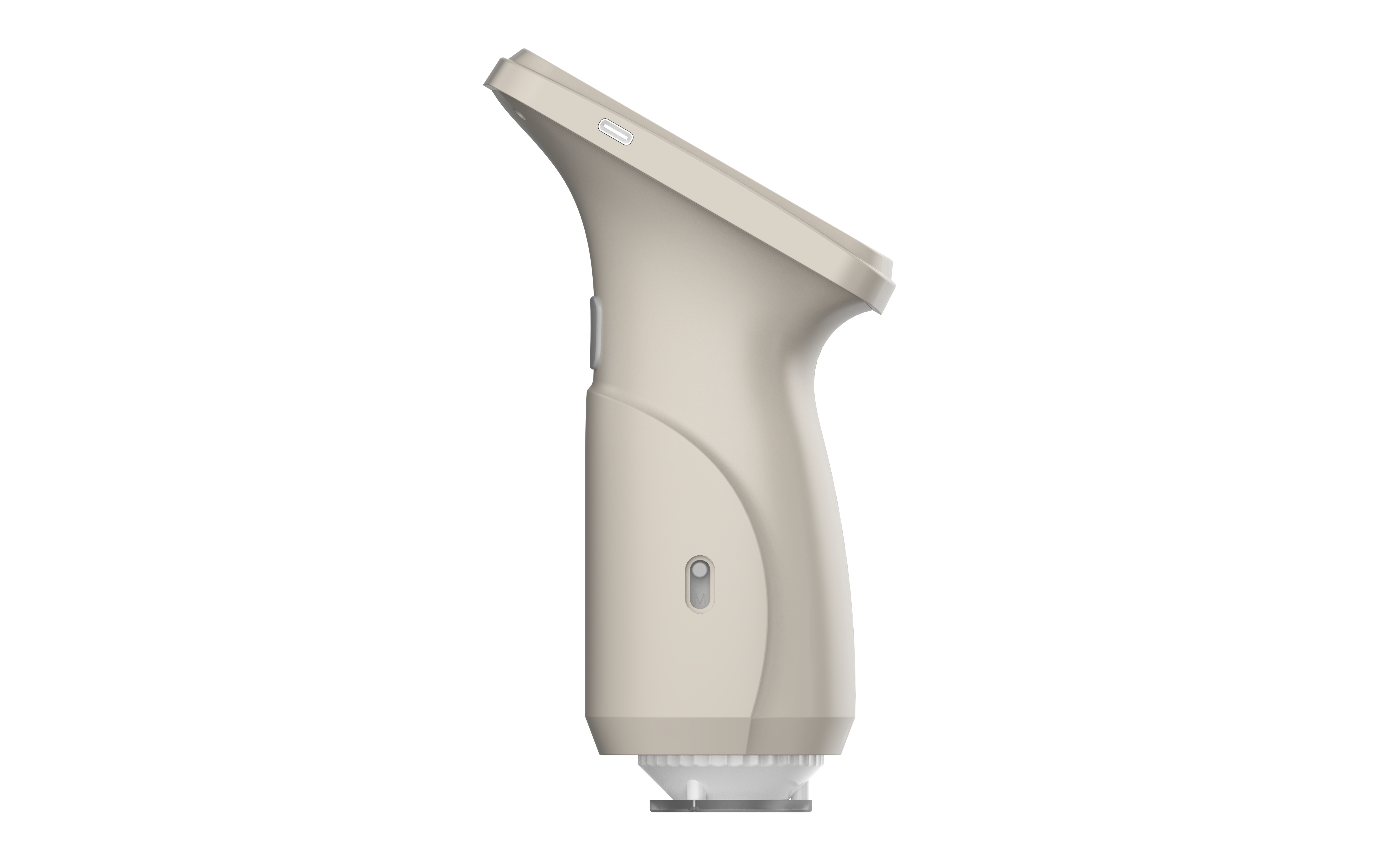

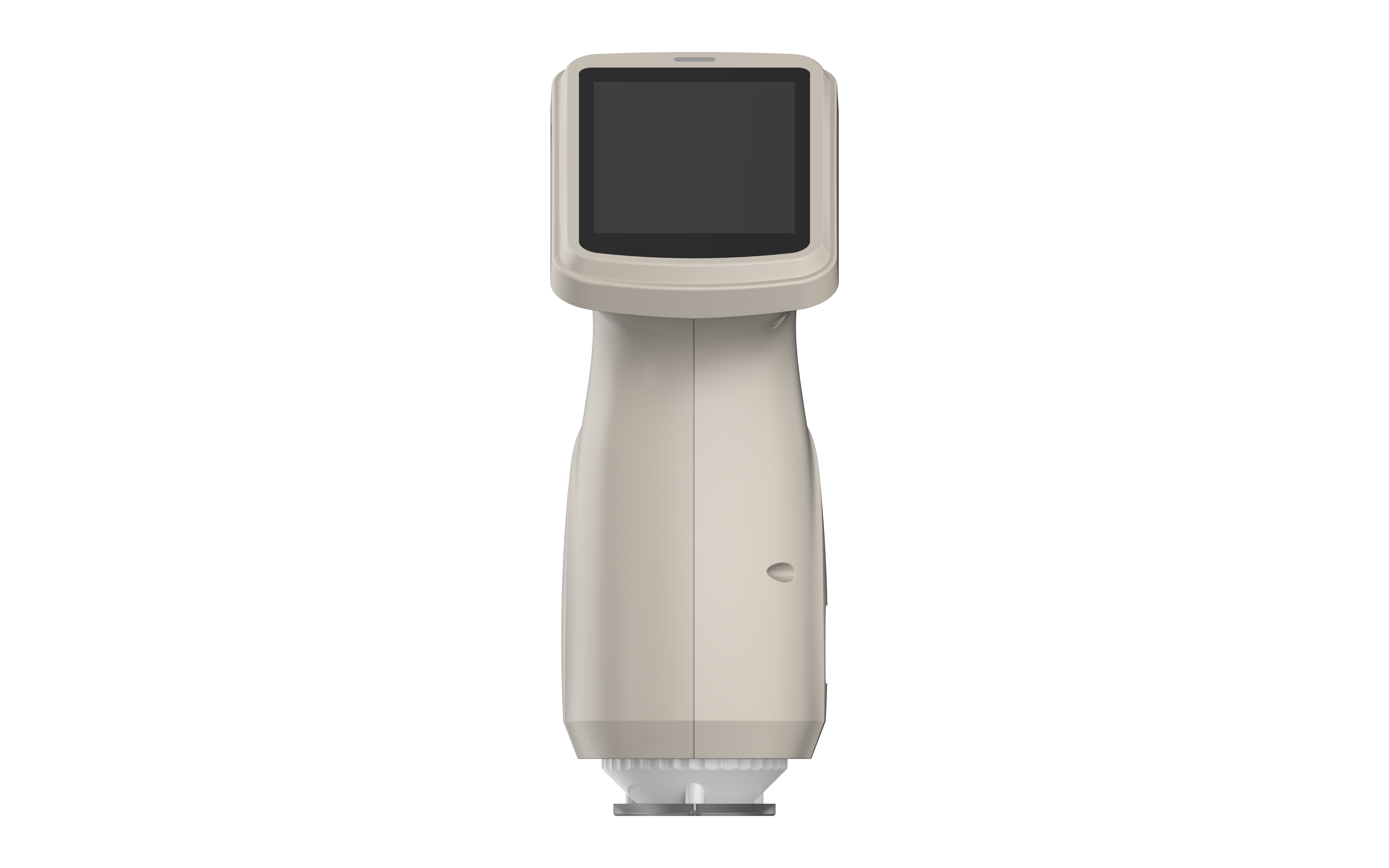

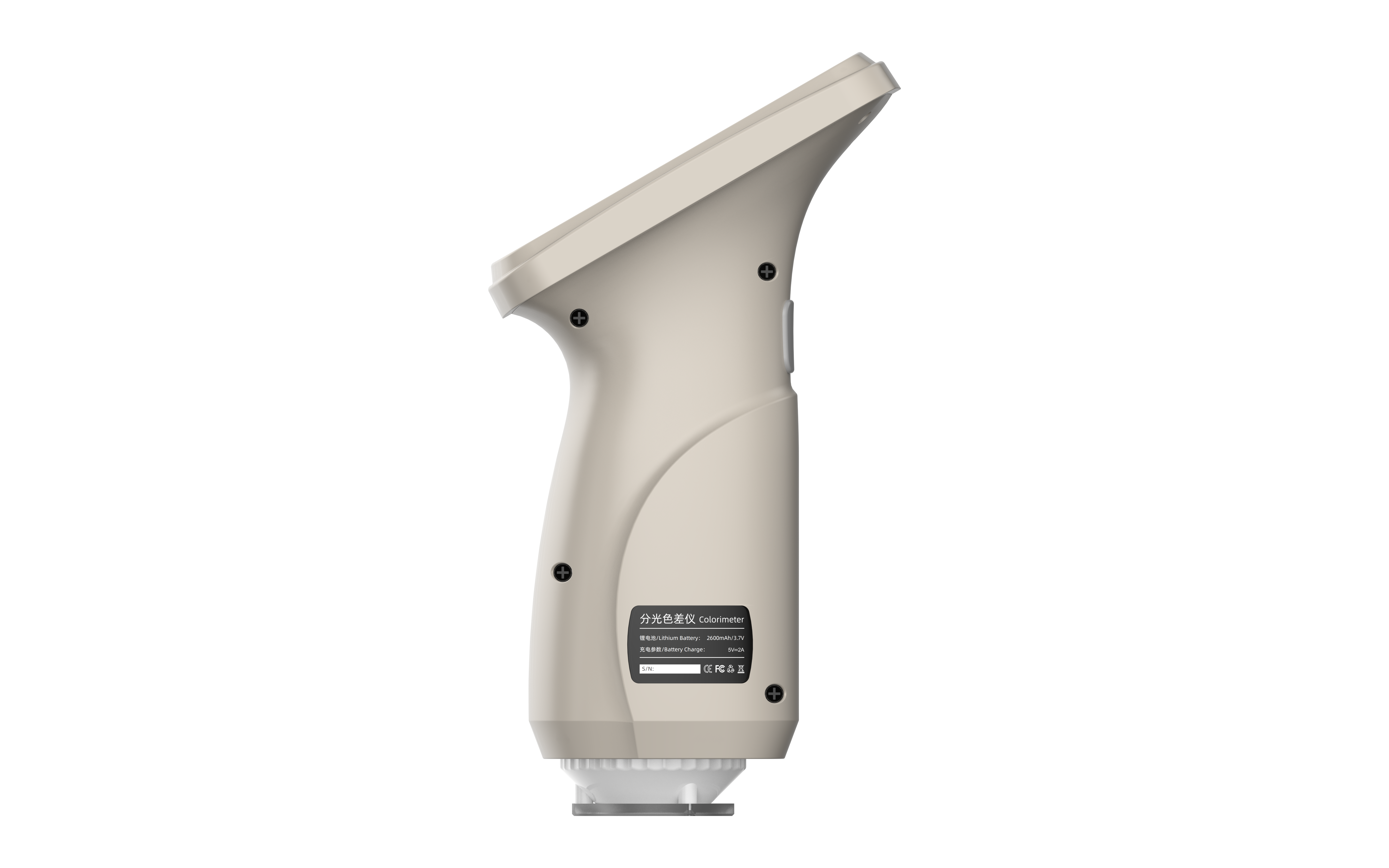

  • 立体图.png 正视图.png 后视图.png 左视图.png 右视图.png
    Contact Now
Leave a Message
X
*
*
*
Leave a Message
X
*

Six Core Selling Points

1.Professional Spectral Measurement

D/8 SCI geometry outputs spectral reflectance and multidimensional color data, allowing for rapid color measurement, color comparison, and color difference determination.

2.Switchable UV Source (On/Off)

Measures both regular and fluorescent materials, enabling comparative analysis of fluorescence impacts on color, whiteness, and yellowness.

3.Φ11mm Large Aperture

Captures color information over a larger surface area in a single scan, reducing interference caused by grain, texture, and localized color irregularities.

4.Multi-Illuminant + Dual Field of View

Supports D50, D65, A, and F series illuminants, multiple LED light sources, as well as 2°/10° standard observers.

5.Comprehensive Professional Metrics

Supports Lab, LCh, XYZ, and various color difference formulas, alongside indexes like whiteness, yellowness, blackness, color density, and opacity.

6.Standalone Color Matching & Software Management

Features standalone color matching, custom color card libraries, and a storage capacity of up to 10,000 records. Connects smoothly to Windows software.


≤0.03

Measurement Repeatability

1 second

Single Measurement Speed

10,000 times

Battery Life

10,000 records

Device Storage

Applications Widely utilized for color quality control across multiple industries

Plastics

Coatings

Paper

Textiles

Leather

Ceramics

Food

Printing

Technical Parameters

Model
 DS-173
Geometry
 D/8,SCI
Repeatability*
 dE*ab≤0.03
Display Accuracy
 0.01
Aperture
 Φ11mm
Measurement Indices
 Spectral Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGBColor Difference (ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00)Whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube Berger Stensby)Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73)Blackness (My, dM), Staining Fastness, Color Change Fastness, Tint (ASTM E313-00)Color Density CMYK (A, T, E, M), Metamerism Index Milm, Munsell, Opacity, Color Strength (Dye Strength, Tinting Strength)
Illuminants
 A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2
Light Source
 Full-band balanced LED light source + UV light source
Software Support
 Windows
Standard Observer
 2°，10°
Integrating Sphere Diameter
 40mm
Standards Complied
 CIE N0.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Spectral Method
 Nano-integrated spectral components
Sensor
 Silicon photodiode array (Dual 16 groups)
Wavelength Interval
 10nm
Wavelength Range
 400-700nm
Reflectance Range
 0-200%
Reflectance Resolution
 0.01%
Measurement Mode
 Single measurement, Average measurement (2–99 times)
Measurement Time
 Approx. 1 second
Interface
 USB
Screen
 Full-color, 3.5-inch touchscreen
Battery Capacity
 3.7V / 2600mAh (allows up to 10,000 continuous measurements on a single full charge)
Light Source Lifespan
 10 years / 3 million measurements
Languages
 Simplified Chinese, English
Storage
 Device: 10,000 data records
Special Features
 Standalone color matching, supports user-defined color card libraries
