1.Product Features

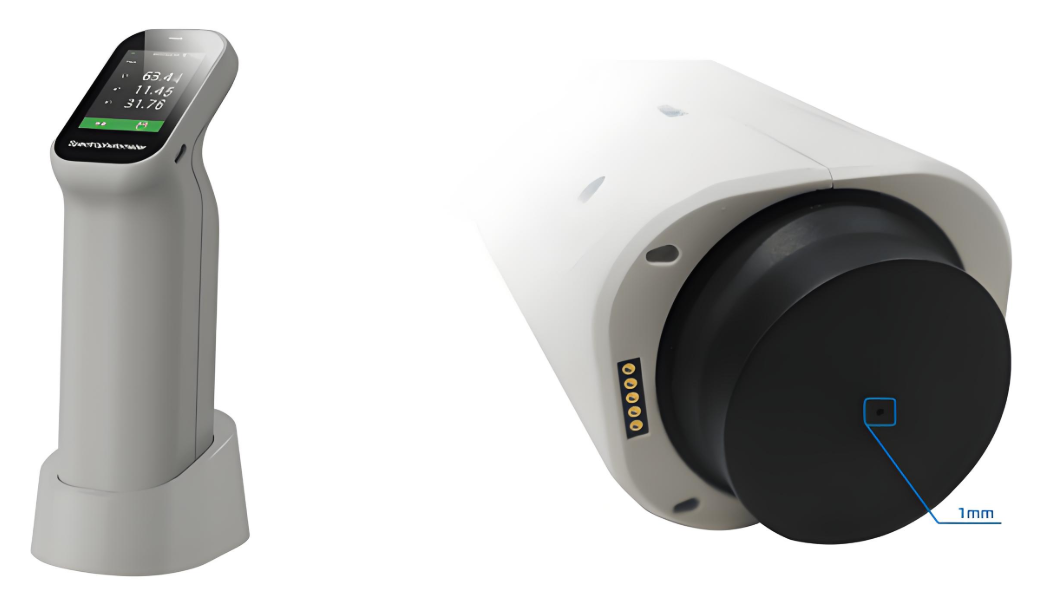

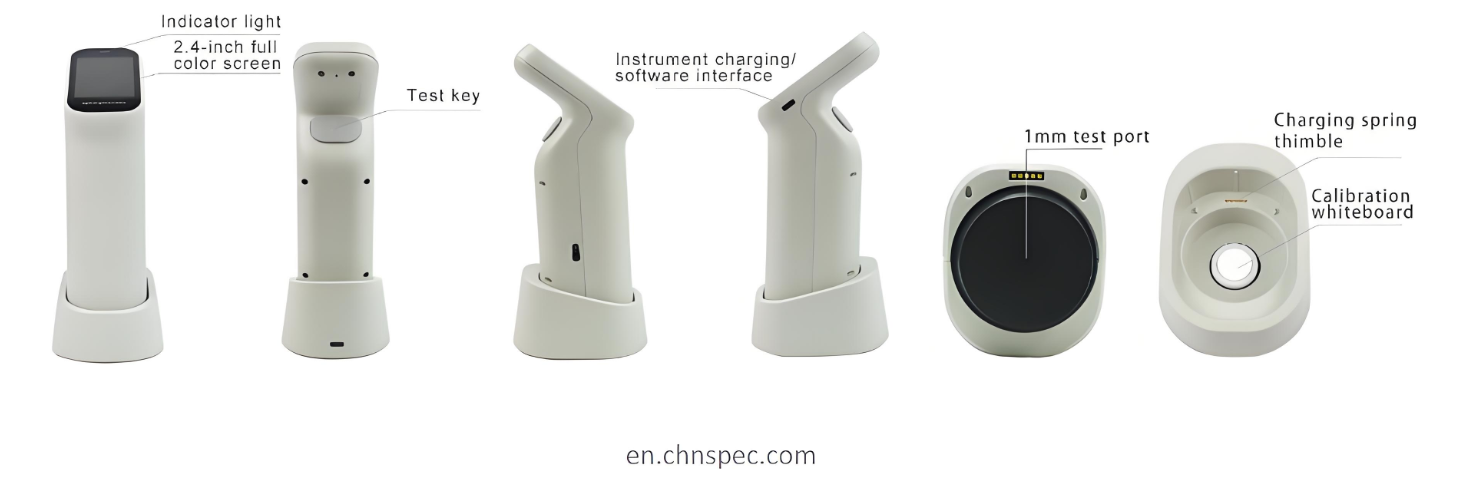

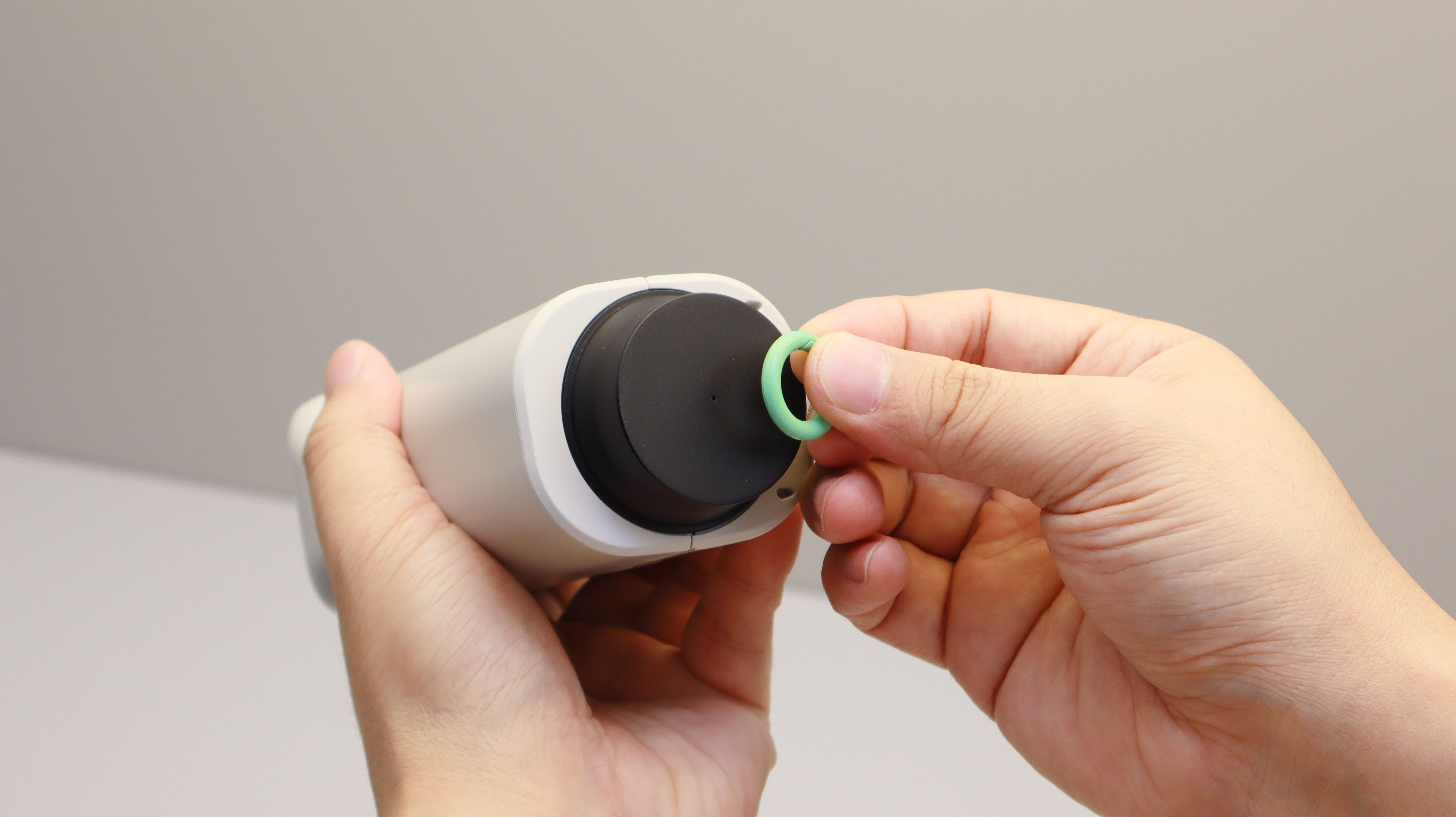

1 mm ultra-small aperture, suitable for Colorimeter detection of very small objects.

Double-light path design improves repeatability accuracy dE*ab≤0.03.

Provide nearly 40 evaluation light sources and more than 30 measurement indexes.

Including SCI measurement mode.

Use powerful PC-side color management system ColorExpert.

Innovative 5 micron thickness nano-integrated optical device.

Support connecting mobile apps.

The calibration base and zirconium standard with Mohs hardness of 9 calibrate the instrument, which ensures the long-term stability of the instrument

Technical Parameters

Product model	DS-201
Measuring structure*	D/8, SCI
Measurement repetability**	ΔE*ab≤ 0.03
Display	0.01
Measuring aperture	Φ1mm
Color Spaces and Indices	Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIELuv, XYZ, Yxy, RGB, Colordifference(ΔEab,ΔEcmc, ΔE94, ΔE00), WI(ASTME313-00, ASTME313-73, CIE, ISO2470/R457, AATCC, Hunter, TaubeBerger Stensby), YI(ASTMD1925, ASTME313-00, ASTME313-73), Blackness(My, dM), ColorFastness
Source condition	A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50, ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2
Light source	LED
Calibration	Auto calibration
Software support	Andriod, IOS, Windows, Wechat app
Observer	2°,10°
Integrating Sphere	20mm
Standards	CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Ways of spectral	Nano-integrated spectral devices
Sensor	Silicon photodiode array Dual 16-group
Wavelength interval	10nm
Wavelength range	400-700nm
Reflectance determination range	0-200%
Reflectance resolution	0.01
Measurement method	Single measurement.average mersurement(2 to 99 measurements)
Measurement time	Approx.1 second
Interface	USB, Bluetooth
Screen	Full color screen, 2.4
Battery capacity	8000 continuous measurements on a single charge, 3.7V/3000mAh
Life of light	10 yearsand 3 million cycles
Language	Simplified Chinese, English
Storage	Instrument:10,000 data; APP: mass storage

* Diffuse illumination / 8° directional reception with specular reflected light included / specular reflected light removed
**White plate calibration with 30 standard deviations measured at 5 second intervals after white plate calibration
