Model |
DS-806 |
|
Illumination Method |
D/8, including specular reflection light (SCI) |
|
Integrating Sphere Diameter |
100mm |
|
Light Source |
Full-spectrum balanced LED light source |
|
Wavelength Range |
400-700nm |
|
Reflectance Measurement Range |
0–200%, resolution 0.01% |
|
Wavelength Interval |
10nm |
|
Measurement Aperture |
50mm |
|
Observation Light Source |
D65 |
|
Observation Light Source |
10° Standard Observer |
|
Measurement Time |
Approx. 1 second |
|
Color Space |
CIE LAB |
|
Chromaticity Indexes |
SCAA value, HCCI index, Roasting Degree |
|
Color Difference Formula |
ΔE*ab |
|
Repeatability |
Standard deviation ΔE*ab within 0.03 (Condition: after calibration and warm-up, measure the white plate 30 times at 3s intervals and take the average) |
|
Inter-instrument Error |
ΔE*ab ≤ 0.4 (Based on the average value of 12 BCRA II color tiles) |
|
Maximum Data Storage |
10,000 records |
|
Dimensions |
202*264*152mm |
|
Weight |
Approx. 3kg |
|
Power Supply |
100~240V 50/60HZ |
|
Measurement Mode |
Single measurement, average measurement |
|
Light Source Lifetime |
10 years / 2 million measurements |
|
Display |
7-inch IPS full-view LCD screen |
|
System Languages |
Simplified Chinese, English |
|
Data Interface |
USB |
|
Operating Temperature Range |
5–40°C, relative humidity ≤80% (at 35°C), no condensation |
|
Storage Temperature Range |
-20–45°C, relative humidity ≤80% (at 35°C), no condensation |
|
Standard Accessorise |
Petri dish, black cavity, white calibration plate, data cable, power cable |

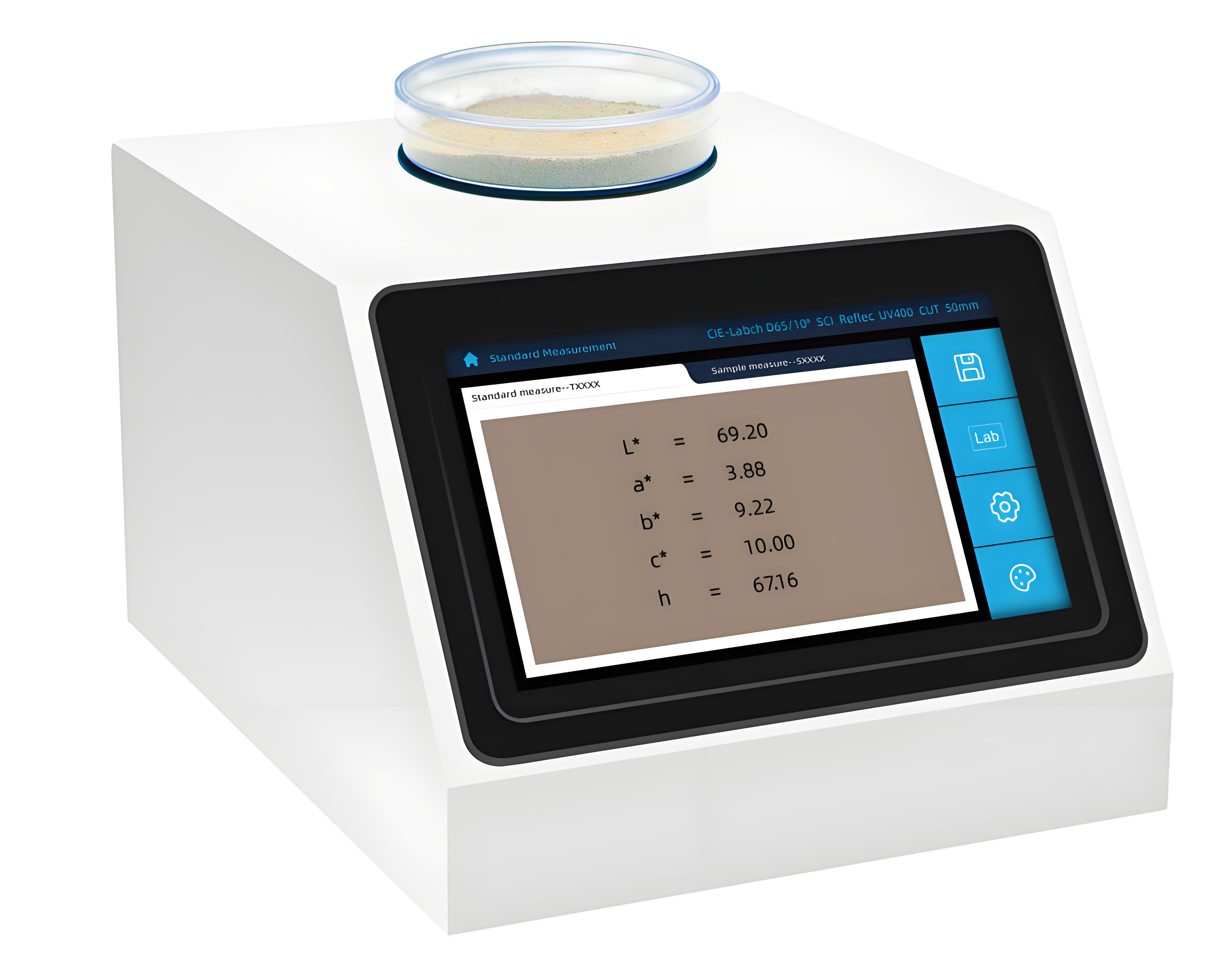

50mm ultra-largeaperture Coffee Colorimeter DS-806
1. Coffee Colorimeter DS-806: Accurately measures coffee color for quality control. 2. DS-806 Coffee Colorimeter: Precise coffee color analysis to ensure consistent quality. 3. Coffee Colorimeter DS-806: Reliable tool for coffee color measurement & q
