Model |
MC03 |
MC06 |
MC12 |
|

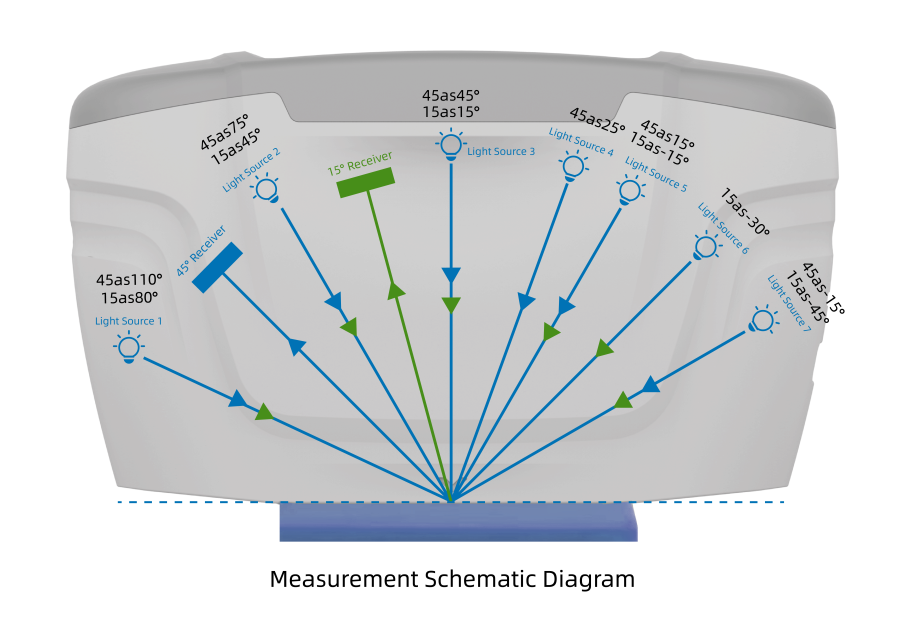

Measurement Geometry |
3 angles (3 light sources, 1 receiver) |
6 angles (6 light sources, 1 receiver) |
12 angles (7 light sources, 2 receivers) |
|
Color Measurement Angles |
45° receiver：45as15°,45as45°,45as110° | 45° receiver：45as-15°,45as15°,45as25°, 45as45,45as75°,45as110 | 45° receiver：45as-15°,45as15°,45 as25°,45as45°, 45as75°,45as110 15°receiver：15as-45°,15as-15°,15as15°, 15as-30°,15as45°,15as80 |
|
Illumination Source |
Full-spectrum LED with blue-light enhancement |
||
|
Light Source Lifetime |
10 years / 5 million measurements |
||
|
Detector |
256-pixel dual-array CMOS image sensor |
||
|
Spectral Range |
400nm-700nm |
||
|
Measurement Aperture |
Illumination Φ24mm / Sampling 9×12mm |
||
|
Additional Indices |
Flop Index, Color Travel Index |
||
|
Measurement Time* |
About 2.5s |
About 4.5s |
About 5s |
|
Battery Life |
Up to 5000 measurements |
||
|
Color Repeatability |
0.02 ΔE*ab (after warm-up calibration, 30 white tile measurements at 5s intervals, standard deviation) |
||
|
Inter-instrument Agreement |
0.2 ΔE*00 (BCRA II, 12 tiles) |
0.2 ΔE*00 (BCRA II, 12 tiles) |
0.18 ΔE*00 (BCRA II, 12 tiles) |
|
Effect Parameters |
/ |
Effect Parameters |
|
|
Effect Measurement |
/ |
6-angle sparkle and graininess: 15as-45°, 15as-30°, 15as-15°, 15as15°, 15as45°, 15as80°; 15d diffuse graininess |
|
|
Effect Repeatability |
/ |
Sparkle short-term repeatability: 0.12% (standard deviation of 10 measurements) (After instrument warm-up calibration, average of 10 measurements on color tile at 10s intervals) Graininess short-term repeatability: 0.09% (standard deviation of 10 measurements) (After instrument warm-up calibration, average of 10 measurements on color tile at 10s intervals) |
|
|
Effect Reproducibility |
/ |
Sparkle reproducibility: 1.9% (standard deviation of 10 measurements) (Average value from measurements on 12 BCRA Series II color tiles) Graininess reproducibility: 1.4% (standard deviation of 10 measurements) (Average value from measurements on 12 BCRA Series II color tiles) |
|
|
Positioning |
Color camera preview |
||
|
Display |
3.5-inch TFT true-color capacitive touchscreen |
||
|
Data Storage |
10,000 records |
||
|
Compliance Standards |
ASTM D 2244,E 308,E 1164,E 2194,E2539,DIN 5033,5036,6174,6175-1,6175-2;IS07724,11664-4, SAE J 1545 |
||
|
Special Features |
Provides precise and consistent color measurement for metallic, pearlescent, and other complex special-effect colors |
||
|
Spectral Dispersion |
Concave grating |
||
|
Wavelength Interval |
10nm |
||
|
Measurement Range |
0~600% |
||
|
Half Bandwidth |
10nm |
||
|
Color Spaces |
CIE LAB,XYZ,Yxy,LCh,βxy.DIN Lab99,RGB,Hunter Lн, ан, bн | ||
|
color difference Formulas |
ΔEab, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), ΔE00, DIN ΔE99, ΔE DIN6175, multiple automotive OEM formulas; Metamerism, ΔEab(Hunter), ΔEch, ΔE*uv |
||
|
Observer Angles |
2°/10° |
||
|
Observation Light Sources |
A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84, ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-8 |
||
|
Display Functions |
Spectral graph/data, sample color values, color difference values/graph, pass/fail results, color simulation, color bias, effect values, effect difference values |
||
|
Trigger Modes |
Pressure sensor, button trigger, software trigger |
||
|
Measurement Modes |
Single, average, continuous measurement |
||
|
Dimensions
|
194 × 73 × 118mm | ||
|
Weight
|
About 850g
|
||
|
Interfaces |
USB, Bluetooth |
||
|
Languages |
Simplified Chinese, Traditional Chinese, English |
||
|
Calibration |
Built-in white reference, external white tile, black cavity, external color tile |
||
|
Operating Conditions
|
10°C–50°C, ≤85% RH, non-condensing
|
||
|
Storage Conditions
|
-20°C–50°C, ≤85% RH, non-condensing
|
||
|
Calibration Interval
|
4h, 8h, 24h, or at startup
|
||
|
Standard Accessories
|
Power adapter, data cable, user manual, quality management software (download), calibration kit, protective cap, wrist strap
|
||
|
Optional Accessories
|
Mini printer
|
||
**Technical specifications are for reference only and are subject to the actual product sold
