45/0 Spectrophotometer DC-27CG Series —— Integrated Color and Gloss Measurement

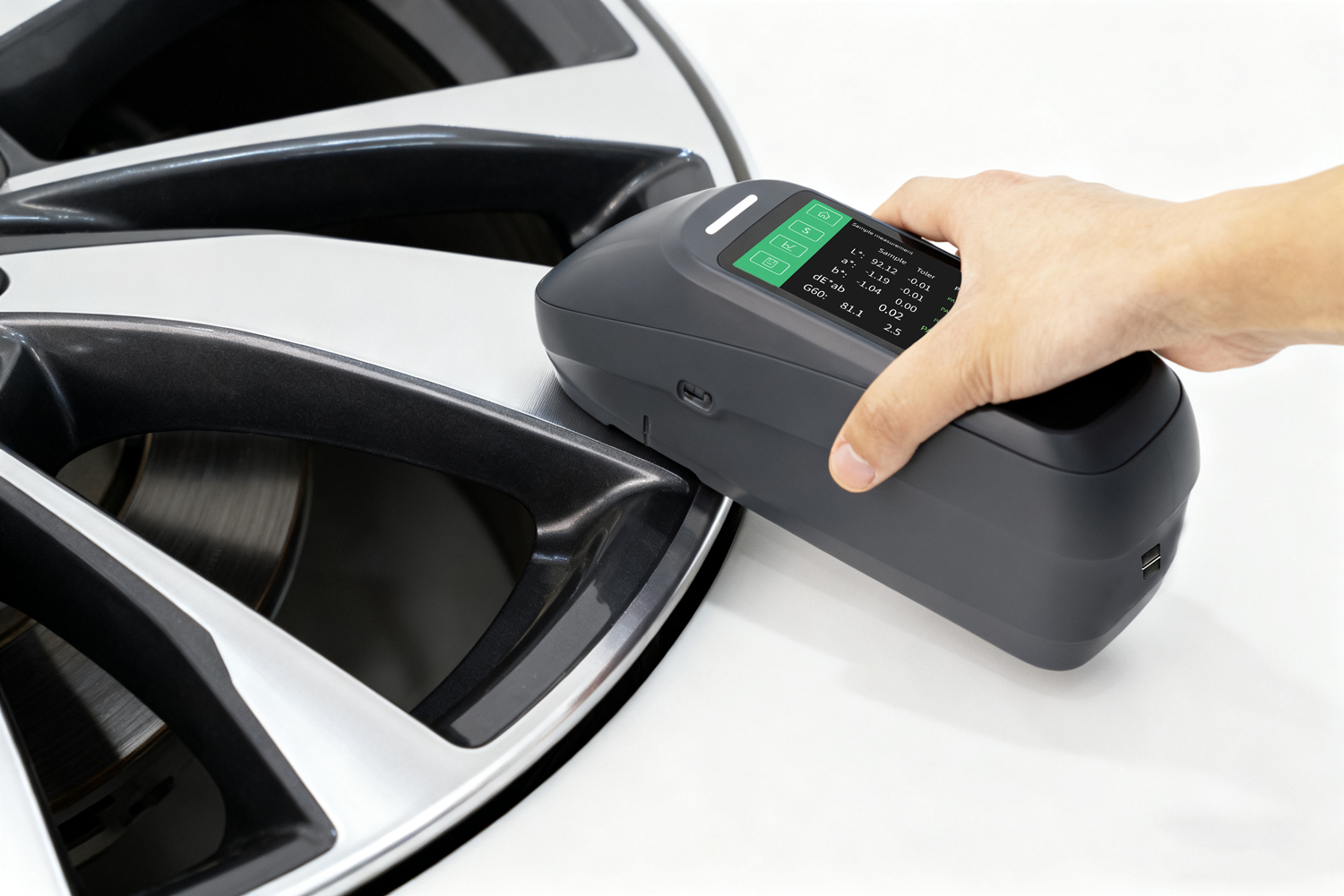

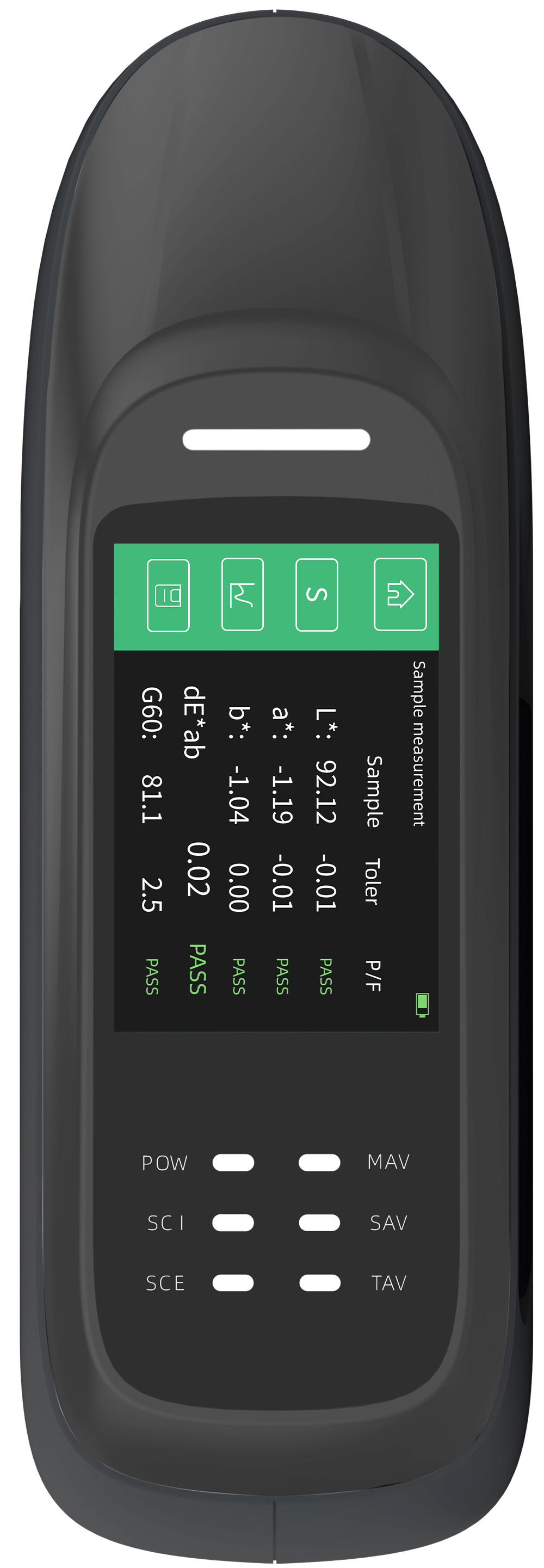

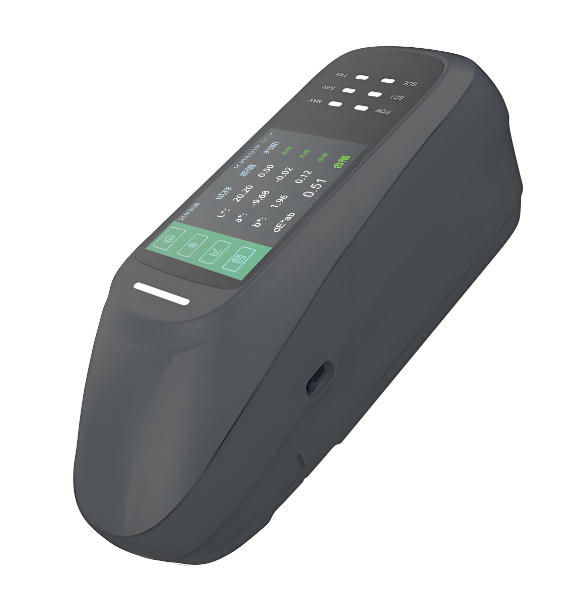

CHNSpec DC-27CG Series 45/0 spectrophotometer is an integrated solution designed for precise color and gloss control across multiple industries.
Home Product Color measurement Portable Spectrophot... 45/0 Spectrophotome...
  • Why Choose the DC-27CG Series
    1. Simultaneous color and gloss measurement for complete insight into product texture
    2. Exceptional inter-instrument consistency ensures global color communication
    3. Full-spectrum analysis from 360–740nm captures every color detail
    4. 10-million-measurement lifespan delivers extraordinary durability
    5. Superior sample adaptability for diverse application challenges.
    6. International-level precision powered by CHNSpec’s advanced core technology

  • 45/0 Spectrophotometer DC-27CG Series 45/0 Spectrophotometer DC-27CG Series
    Contact Now
Leave a Message
X
*
*
*
Leave a Message
X
*
Feature Introduction

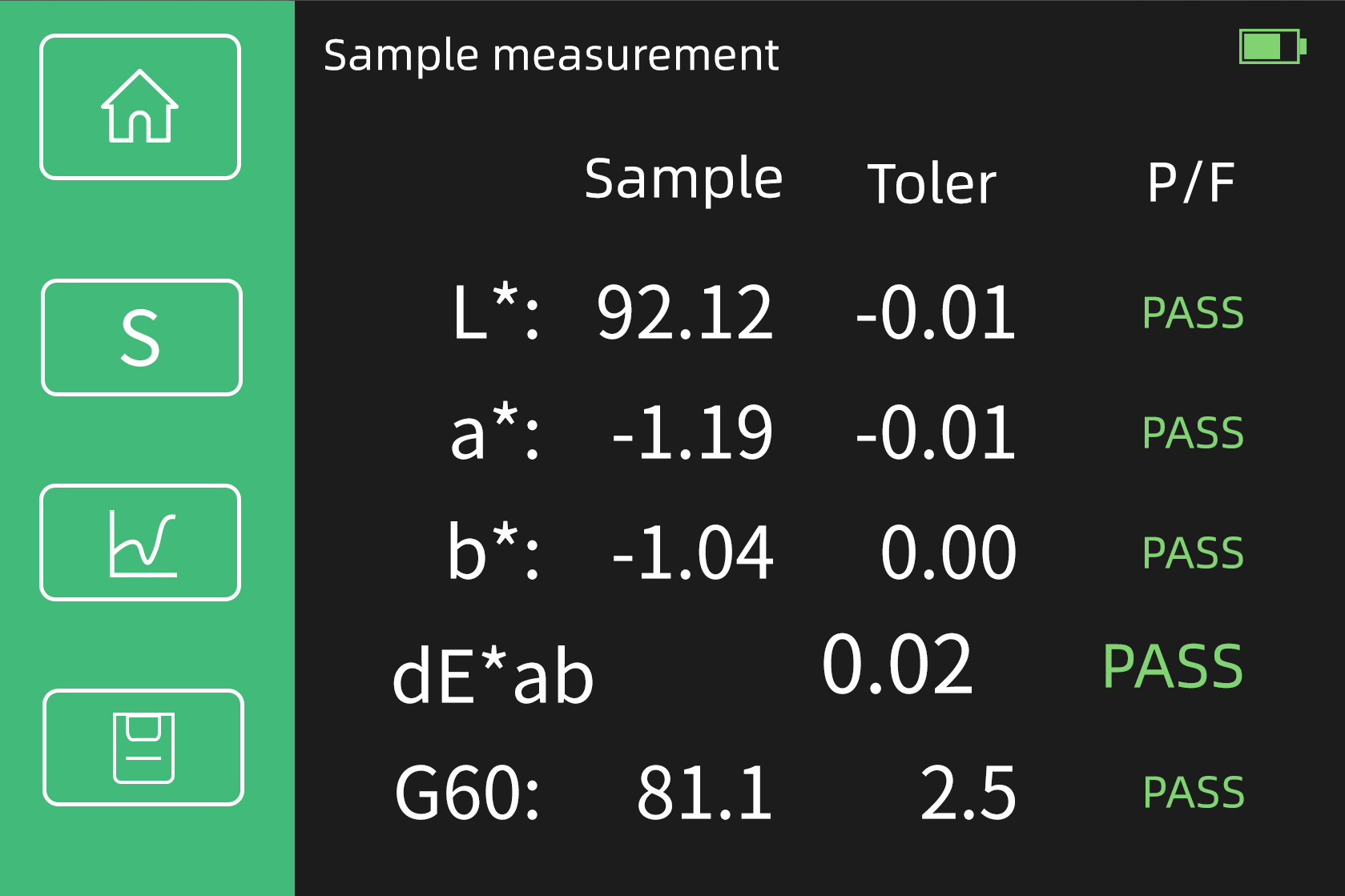

  • Simultaneous color and gloss measurement — perceive the complete texture of your product

Visual perception is a combination of color and gloss. Traditional methods require two separate instruments and two measurements, which are time-consuming and inefficient. We have innovatively integrated high-precision color difference measurement and gloss analysis into one device. With a single click, the screen instantly displays both color parameters (Lab, LCh) and gloss values (GU), enabling more comprehensive and efficient quality control.


  • Exceptional inter-instrument consistency — ensure global color communication

For enterprises with multiple production lines or extensive supply chains, consistency between instruments is crucial. Through advanced manufacturing processes and individual device calibration, we have minimized inter-instrument variation to within an extremely small range (ΔE*ab ≤ 0.2). This guarantees uniform color standards from laboratory formulation to production and customer inspection.


  • 10-million-measurement lifespan — built for exceptional durability

The core light source is the “heart” of the instrument. The DC-27CG adopts a full-spectrum balanced LED light source, ensuring both stability and accuracy while achieving an unprecedented service life of 10 million measurements. This translates to longer equipment life cycles and lower ownership costs — a smart investment for the future.


  • Full-spectrum analysis from 360–740nm — no color detail overlooked

A wider wavelength range means more comprehensive color information. The DC-27CG covers the full visible spectrum from 360nm to 740nm and includes independent UV light source control. Whether measuring ordinary colors or special materials containing fluorescent or whitening agents (such as textiles, plastics, or paints), it precisely captures true color and eliminates metamerism.


  • Superior sample adaptability — confidently handle any challenge

Your measurement needs are already anticipated. With optimized optical structure and comprehensive accessory support, the DC-27CG easily measures samples from multiple industries including plastics, coatings, textiles, printing, food, and pharmaceuticals. Whether solids, powders, liquids, or pastes, you’ll always find the ideal measurement solution — truly achieving one instrument for multiple applications.


  • International-level precision — powered by CHNSpec’s confident core technology

Still hesitating between domestic and imported instruments? We’ve resolved that dilemma. The DC-27CG undergoes rigorous benchmark testing to ensure every color metric meets industry-leading standards. You’ll enjoy equal precision and stability as imported brands — at a more competitive cost.


Product Parameters

Model
 DC-26C
 DC-26CG
 DC-27CG
Measurement Geometry
 45/0
 45/0 + 60° Gloss
Measurement Repeatability※
 dE*ab≤0.02
Inter-Instrument Agreement※※
 dE*ab≤0.25
 dE*ab≤0.2
Display Accuracy
 0.01
Measurement/Illumination Aperture
 Φ8mm/11mm
Measurement Angle
 - 60°
Measurement Spot (mm)
 - 60°:11mmX15mm
Measurement Range
 - 60°:0-400GU
Division Value
 - 0-100:0.1GU,>100:1GU
Measurement Repeat Accuracy
 - 0-100GU:0.2GU,100-400GU:0.2%GU
Measured Parameters
 Spectral reflectance, CIE-Lab, CIE-LCh, Hunter Lн,ан,bн, CIE-Luv, XYZ, Yxy, RGB, Color Difference (ΔEab, ΔEcmc, ΔE94, ΔE00), Whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube Berger Stensby), Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness (My, dM), Color Fastness to Rubbing, Color Fastness to Light, Tint (ASTM E313-00), Color Density CMYK (A, T, E, M), Metamerism Index Milm, Munsell, Hiding Power, Tinting Strength (Dye Strength, Color Strength)
Light Source Conditions
 A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1, LED-V2
Illumination Source
Full-spectrum balanced LED + UV
Field of View
2°,10°
Conforming Standards
 CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Spectral Method
 Grating
Sensor
Dual-row high-precision CMOS array sensor
Wavelength Interval
 10nm
Wavelength Range
 360-740nm
Reflectance Range
 0-200%
Reflectance Resolution
 0.01%
Measurement Observation Method
 Visual
Calibration
 Intelligent automatic calibration
Software Support
 Android,iOS,Windows,WeChat Mini Program
Accuracy Assurance
 Guaranteed first-class metrological qualification
Measurement Time
 Approx. 1s
Interfaces
 USB,Bluetooth
Screen
Full-color 3.5-inch display
Battery Capacity
 Approx. 8000 measurements per charge, 7.2V/3000mAh
Light Source Lifespan
10 years / approx. 10 million measurements
Languages
 Simplified Chinese, English
Data Storage
 Instrument: 10,000 records; App: virtually unlimited
Dimensions
 Approx. 230×78×93 (mm)
Weight
 Approx. 590g
※ Measured after whiteboard calibration: 30 consecutive whiteboard measurements at 5s intervals using MAV aperture; results represent standard deviation

※※ Based on the average of 12 BCRA Series II tiles measured using MAV aperture
