Product model |
TH-05 |
TH-06 |
TH-07 |
|
Light source |
CIE-A、CIE-C |
CIE-A、CIE-C、CIE-D65 |
|
|
Follow the standards |
ASTM D1003/D1044，ISO13468/ISO14782，JIS K 7105，JIS K 7361，JIS K 7136，GB/T 2410-08 |
||
|
Measurement parameters |
Haze and transmittance under ASTM standards |
Haze and transmittance under both ASTM and ISO standards |
|
|
Spectral response |
CIE spectral function Y/V(λ) |
||
|
Optical path structure |
0/d |
||
|
Measurement diameter |
21mm |
21mm，7mm |
|
|
Range |
0-100% |
||
|
Resolution |
0.1% |
0.01% |
|
|
Repeatability |
0.1 |
0.08 |
0.05 |
|
Sample size |
Thickness ≤145mm |
||
|
Display |
7-inch IPS full-view LCD screen |
||
|
Touch |
Capacitive touch screen |
||
|
Store data |
10,000 values |
20,000 values |
|
|
Light source lifespan |
Five million times in five years |
||
|
Interface |
USB interface |
||
|
Power supply |
DC 12V/3A |
||
|
Working temperature |
5 to 40℃, relative humidity 80% or lower (at 35℃), no water vapor condensation |
||
|
Storage temperature |
-20 to 45℃, relative humidity 80% or lower (at 35℃), no water vapor condensation |
||
|
Volume |
Length X width X height: 310mmX215mmX540mm |
||
|
Weight |
6kg |
||
|
Standard configuration |
PC management software(HAZE QC) |
||
|
Optional |
Measuring fixtures, haze standard plates, custom diameter plates |
||

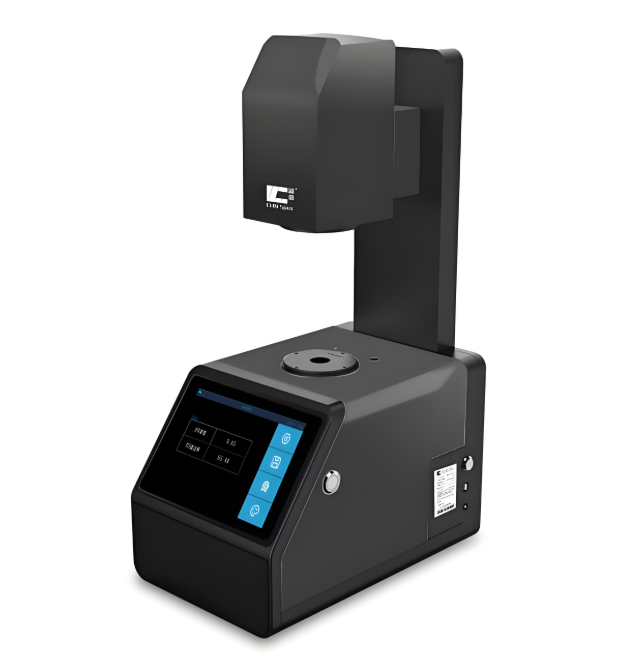

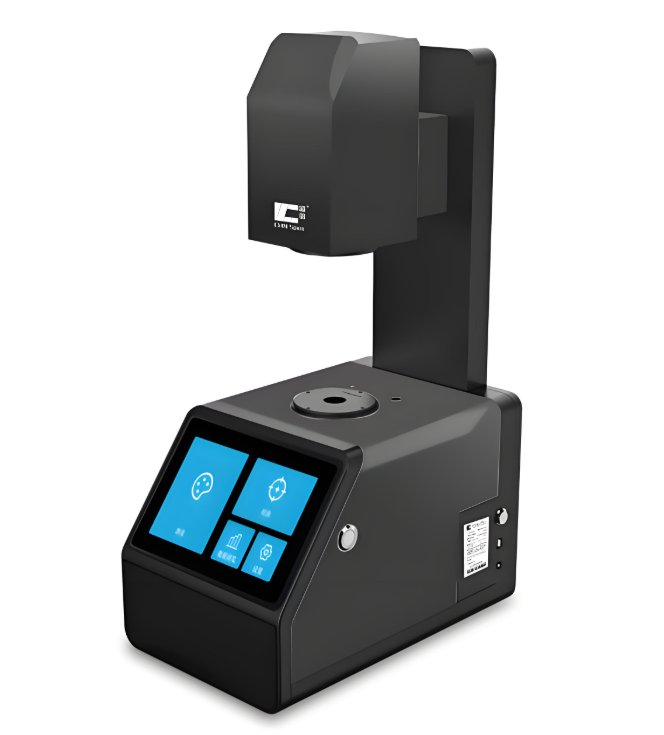

TH-07 series touch screen haze meter
The TH-07 series haze meter of CHNSpec Technology is specially designed for transparent materials such as plastic, glass and film, accurately measuring haze and light transmittance, and complies with ASTM/DIN standards.
