| Product number | FS-19S | FS-19-MY | FS-19M | FS-19X |
| Lighting method | Passive lighting (excluding light source) | |||
| Spectral method | Transmission grating | |||
| Spectral range | 900-1700nm | |||
| Number of spectral bands | 200 | 150 | 100 | |
| Spectral resolution | ＜8nm | ＜9nm | ＜13nm | |
| Slit width | 25um | |||
| Transmission efficiency | ＞60% | |||
| Stray light | ＜0.5% | |||
| Number of spatial pixels | 640 | |||
| Pixel size | 15um | |||
| Lens focal length | Standard 8mm (optional 6mm, 12mm, 25mm, 35mm lenses) | |||
| Field of view | 62°(8mm focal length lens), 77°(6mm lens) | |||
| Imaging speed | 724fps |
8 spectral channels > 7800fps 16 spectral channels > 4900fps |
2400fps | 3500fps |
| Detector | InGaAs | |||
| SNR(Peak) | 600/1 | |||
| Camera output | Cameralink | GigE | Cameralink | |
| Camera interface | C-Mount | |||
| Accessories | Lens, data cable, power supply, data acquisition card | |||
| Technical Support | SDK can be provided to support secondary development | |||
| ROI | Single region | Multiple regions | Single region | |
| Size | Length*Width*Height: 347mm*122mm*136mm | |||

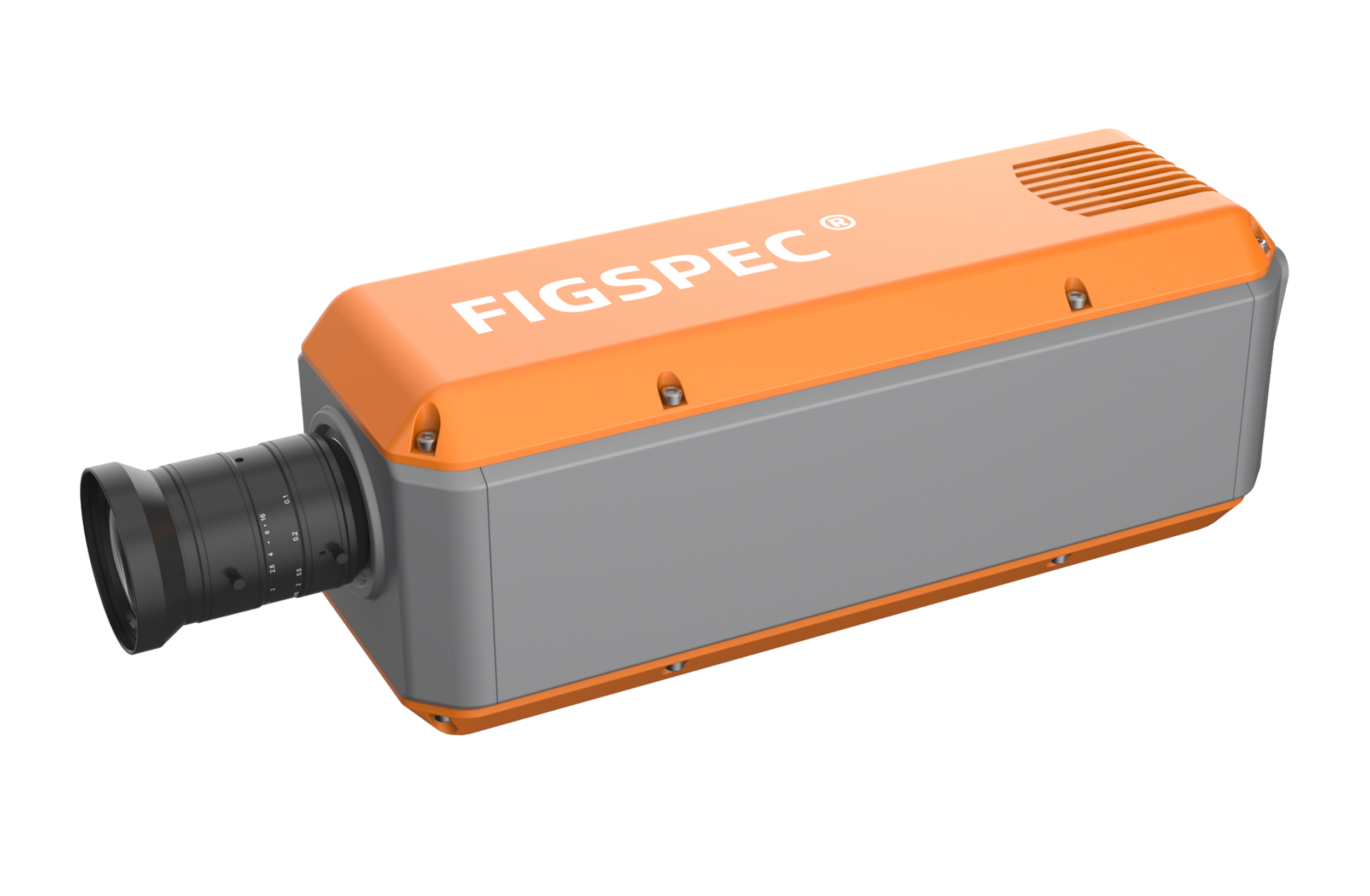

FS-19 Series Industrial online high-speed short-wave infrared hyperspectral camera

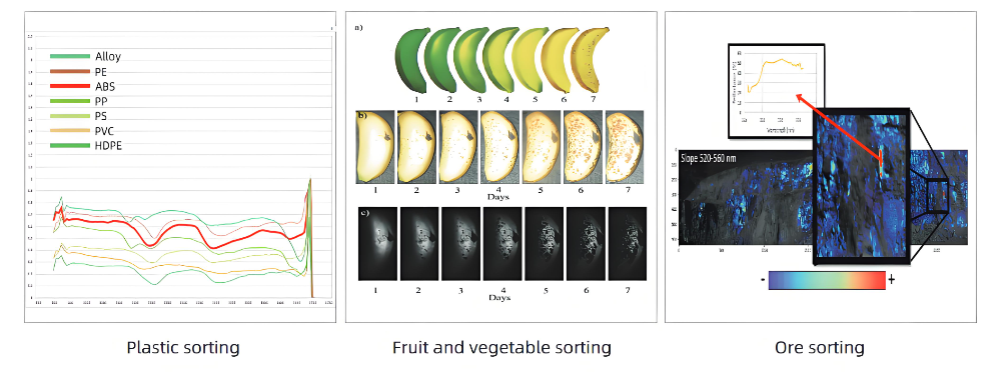

FS-19 Series is an online high-speed SWIR hyperspectral camera tailored for industrial sorting. Its rugged and compact design ensures seamless integration for high-efficiency sorting of plastics, ores, and agriculture.
