Spectral Range |
900-2500nm
|
|

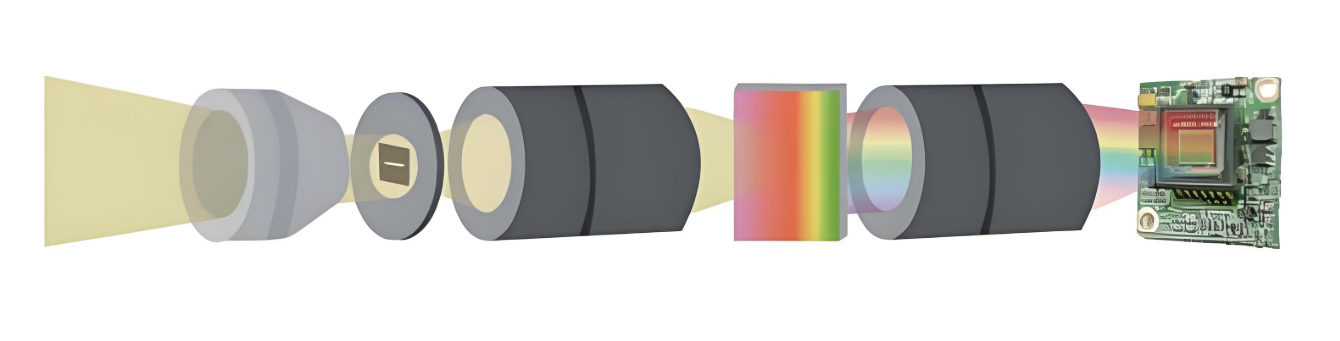

Dispersion Device Tranmission |
Transmission Grating |
|
Number of Spectral Channels |
≥250
|
|
Number of Spatial Channels |
≥640 |
|
Spectral Sampling Interval |
≤6.5nm |
|
Spectral Resolution（FWHM） |
≤10nm |
|
F-Number
|
F/2.5 |
|
Detector Type |
MCT |
|
Detector Size |
≥9.6×7.68mm |
|
Pixel Size |
≥15um×15um |
|
Effective Bit Depth |
≥14bits |
|
Lens Focal Length |
25mm |
|
Field of View |
21.7°@f=25mm
|
|
Instantaneous Field of View |
0.59mrad@f=25mm |
|
Cooling Method |
Stirling Cooling |
|
Effective Slit Length |
≥9.6mm |
|
Slit Width |
≤25um |
|
Frame Rate |
200fps |
|
Operating Temperature |
0-40°C |
|
Storage Temperature |
0-50°C |
|
Camera Interface |
USB3.0 |
|
Application Software |
FIGSPEC SCAN2.0，FIGSPEC Studio Imaging Analysis Software |
|
Data Formats |
Compatible with spe, hdr, scp formats
|

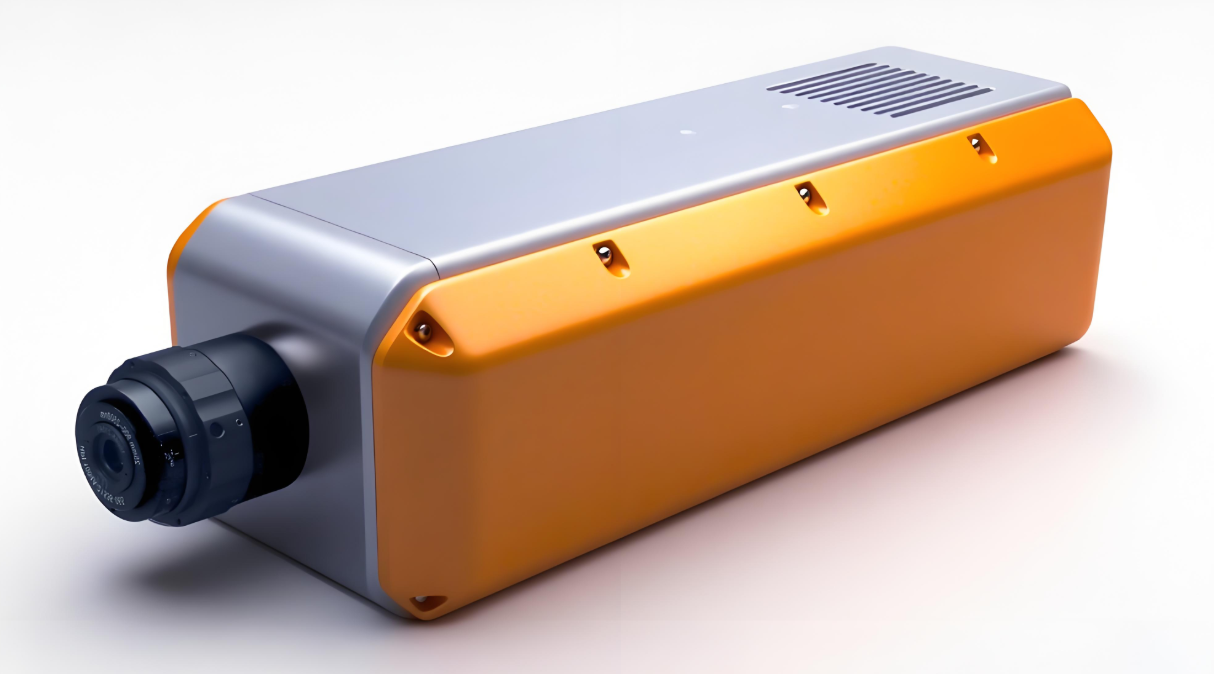

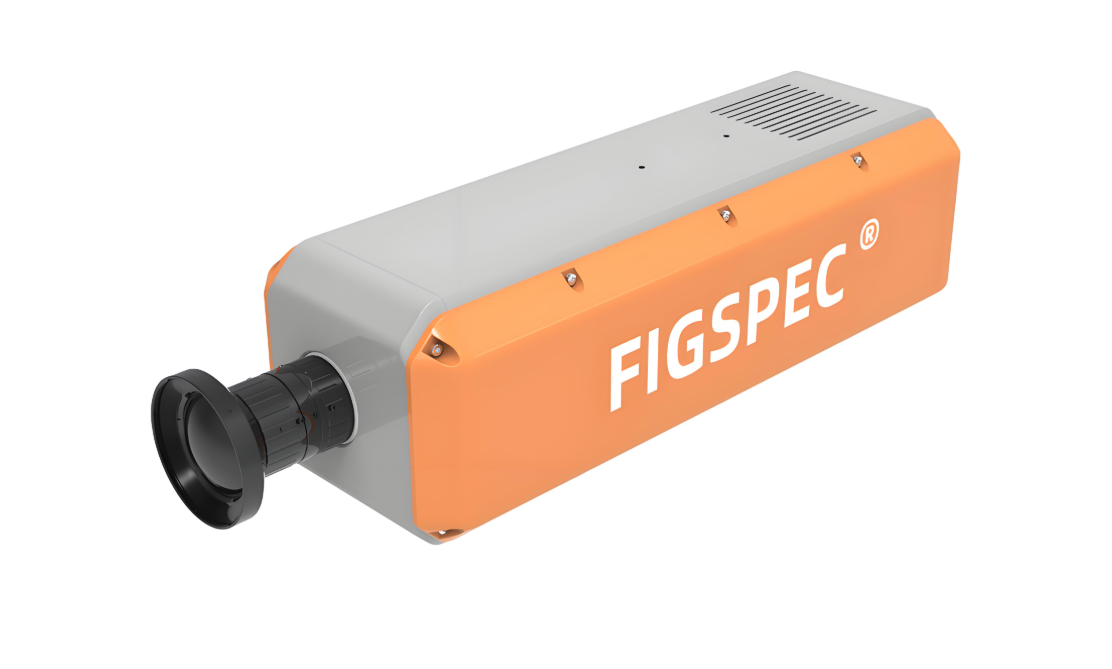

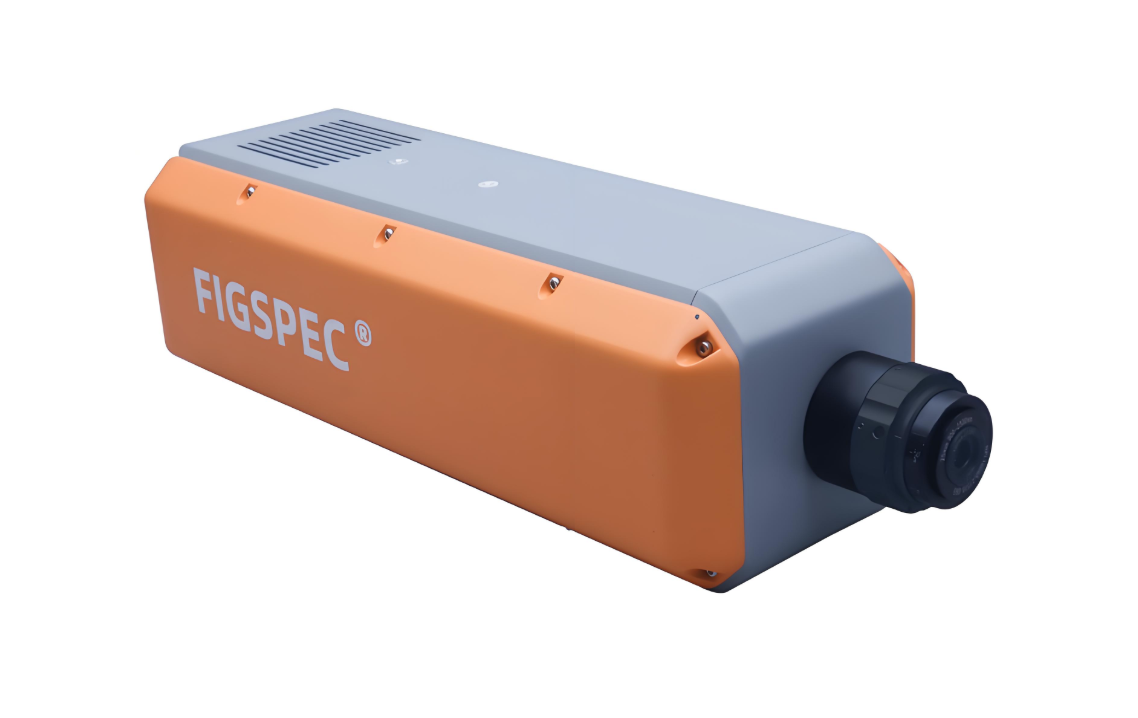

FS1A Series-Hyperspectral Camera (Line Scan)

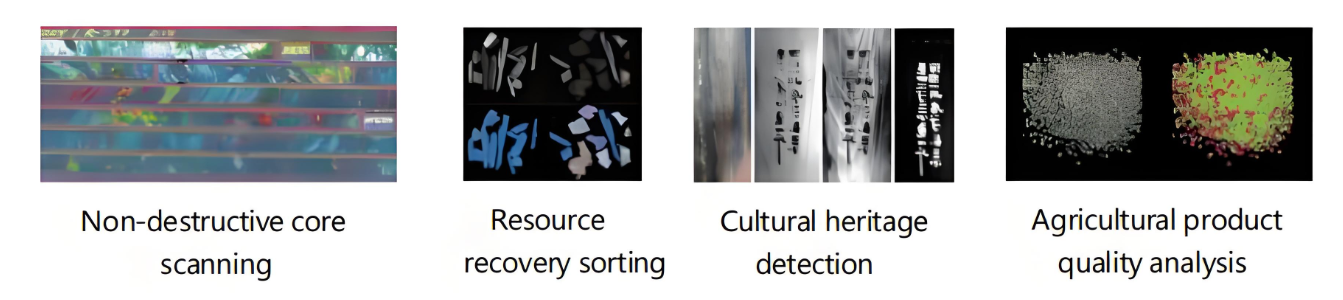

The FS1A hyperspectral camera covers the visible light to short-wave infrared spectral region, providing efficient data support for industrial quality control and scientific research exploration.
