Spectral Range |
900-2500nm |
|
Dispersion Element |
Transmission Grating |
|
Scaning Method |
Built-in Push-broom |
|
Number of Spectral Channels |
≥250 |
|
Number of Spatial Channels |
≥640×640 |
|
Spectral Sampling Interval |
≤6.5nm |
|
Spectral Resolution （FWHM） |
≤10nm |
|
F-Number
|
F/2.5 |
|
Detector Type |
MCT |
|
Srnsor Size |
≥9.6×7.68mm |
|
Pixel Size |
≥15um×15um |
|
Effective Bit Depth |
≥14bits
|
|
Lens Focal Length |
25mm |
|
Field of View (FOV) |
21.7°@f=25mm
|
|
Instantaneous FOV (IFOV) |
0.59mrad@f=25mm |
|
Cooling Method |
Stirling Cooling |
|
Effective Slit Length |
≥9.6mm
|
|
Slit Width |
≤25um |
|
Frame Rate |
200fps |
|
Operating Temperature |
0-40°C |
|
Storage Temperature |
0-50°C |
|
Camera Interface |
USB3.0 |
|
Application Software |
FIGSPEC CAM, FIGSPEC Studio, Image Analysis Software |
|
Data Format |
Compatible with SPE, HDR, SCP formats |
|
Auxiliary Imaging Fuction |
Auxiliary viewfinder camera for monitoring the shooting area |
|
Power Supply |
Built-in battery |

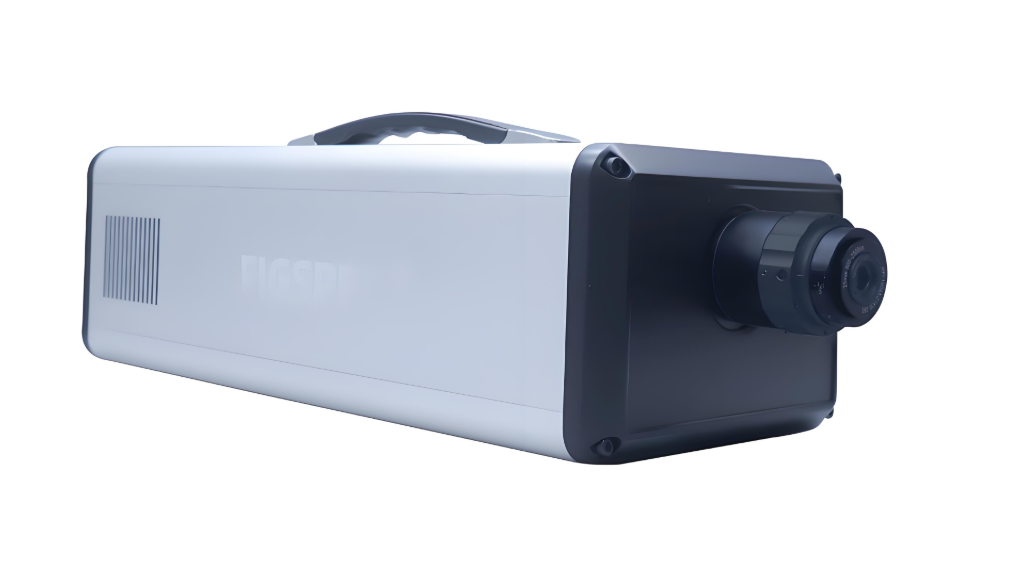

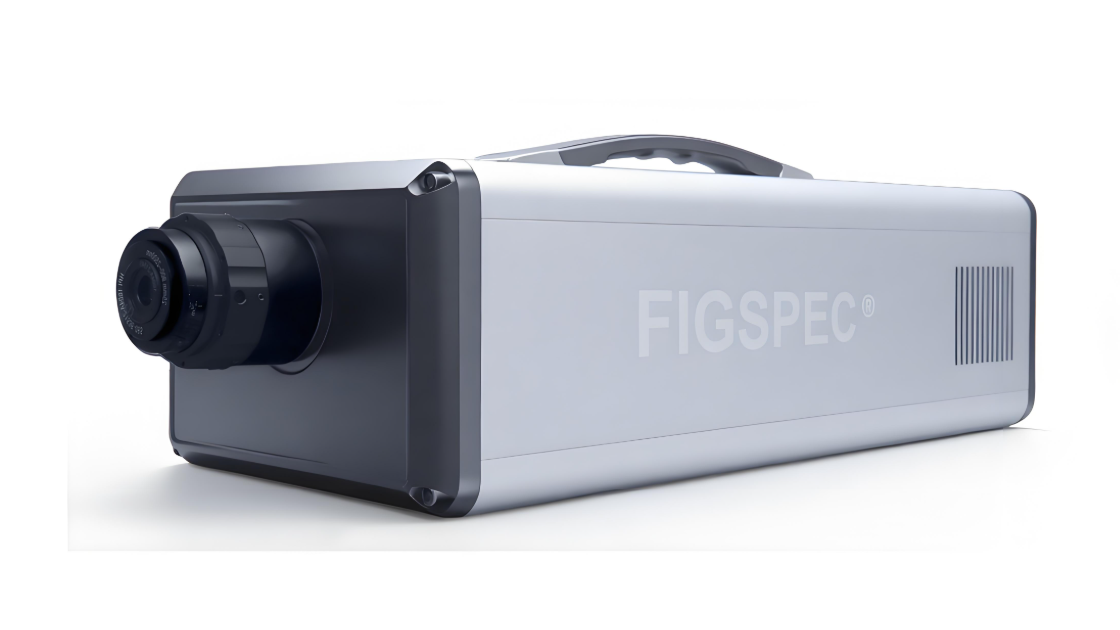

FS-2A Full Spectrum Hyperspectral Camera
The FS2A hyperspectral camera is suitable for scenarios such as printing and textile inspection, laboratory research, and agricultural phenotypic analysis, empowering the intelligent upgrade of industries with high precision and stability.
