Product model |
CS-300A |
|
Measurement angle |
60° |
|
Measurement s pot(mm) |
60°,9*15 |
|
Measurement range |
60°:0-200GU |
|
Division value |
1GU |
|
Measurement mode |
Simple mode and statistical mode |
|
Measurement accuracy |

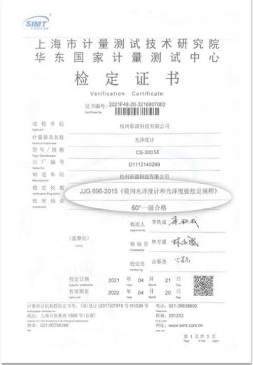

Meet the requirement of JJG 696-2015 gloss meter |
|
Measurement time |
Less than 1s |
|

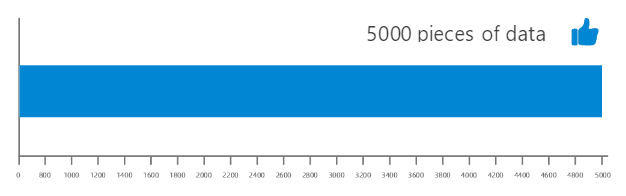

Data storage |
5000 lines |
|
Volume |
165*51*77mm(length*width*height) |
|
Weight |
About 400g |
|
Language |
Simplifed Chinese, English |
|
Battery power |
3000mAh lithium battery |
|
Battery life |
100,000 times when fully charged |
|
Interface |
Type-C |
|
Screen size |
2.4 inches(resolution 320*240) |
|

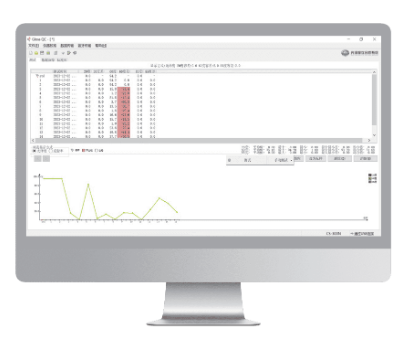

Computer software |
Support |
|
Working temperature |
0-40°C |
|
Humidity |
Less than 85%， no condensation |
|
Accessories |
5V/2A charging head, data cable, manual, USB flash drive (host computer software), calibration standard plate, third-party verification certificate |
|
Application |
Paints and inks, coatings, electroplating, plastic electronics, hardware and other fields |

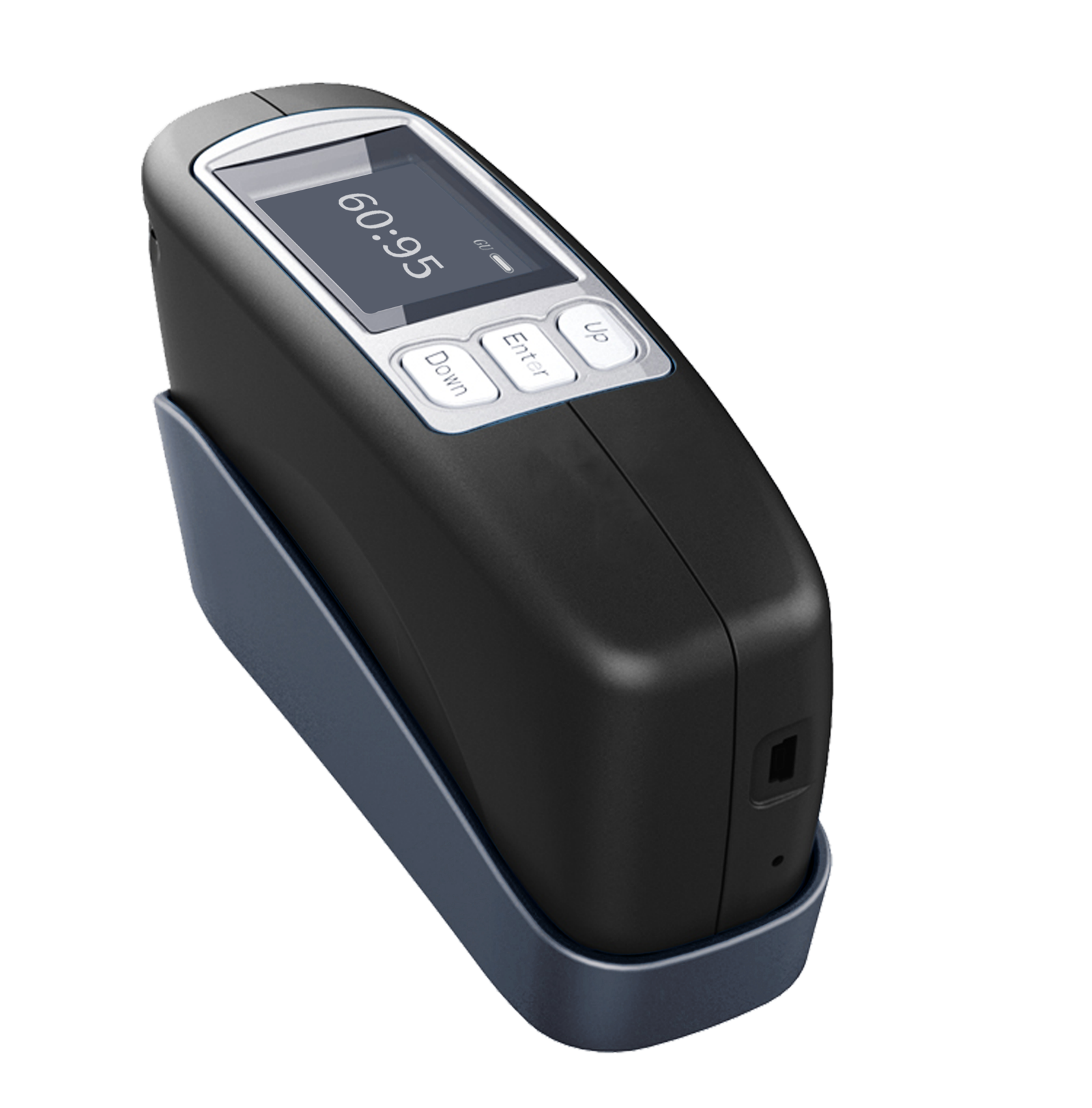

Gloss Meter CS-300A
The CS-300A gloss meter features a universal measurement Angle of 60° and is suitable for measuring the surface gloss of materials in various industries such as spraying and plastics. It complies with multiple international standards
