Types |
Night test |
All-weather test |
|
|
Model |
EP-NU-1200 |
EP-DU-300 |
EP-DU-500 |
|
Inspection Mode |

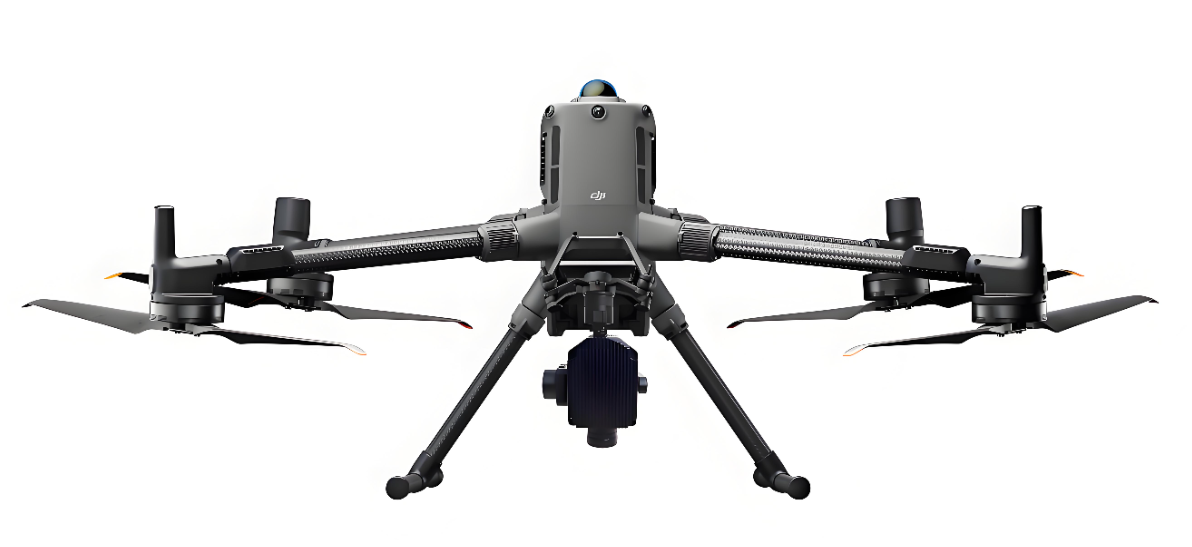

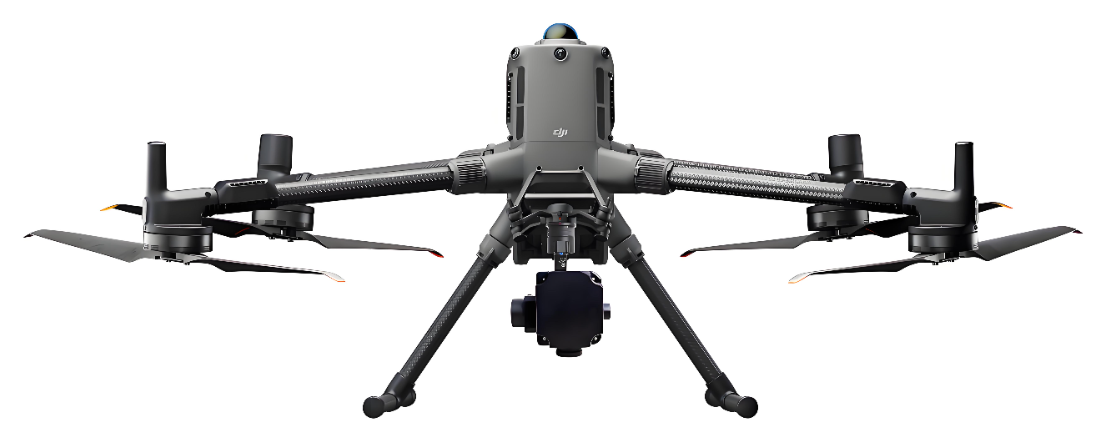

UAV-mounted inspection |
||
|
EL Video |
Enables high-definition string-level EL video function |
||
|
Remote Controller with Screen |
Remote control aircraft, gimbal, infrared camera; adjustable camera configuration parameters; real-time inspection images viewable on display screen; photo capture function controllable |
||
|
UAV Positioning |
UAV Positioning |
||
|
UAV Battery |
1 set (standard) |
||
|
Operating Temperature |
-10～50℃ |
||
|
Controllable Rotation Range |
Tilt: -(120, 60); Pan: -(310, 310) |
||
|
Pixel |
12 million pixels |
3 million pixels |
12 million pixels |
|
GPS Recording |
EL imaging automatically records GPS/BeiDou positioning coordinates (latitude/longitude) |
||
|
Defect Location |
Satellite-based latitude/longitude positioning enables precise navigation to locate each defective module's coordinate point |
||
|
Field of View |
46.3°× 36° |
39.1°x 29.8° |
|
|
Measurement Environment |
Light/moonlight/starlight has no effect on detection |
Daylight, moonlight, starlight, and artificial light have no effect on the test; all-weather adaptable |
|
|
Preview Function |
Real-time preview, Users can directly view overall or partial internal defects of the modules through the live feed |
||
|
mage Format Output |
JPEG |
||
|
Operation Interface |
Chinese / (English optional) |
||
|
Night Vision Function |
Supported |
||
|
Weight |
＜1KG |
||
|
Dimensions |
133*80*76mm |
106*80*76mm |
|

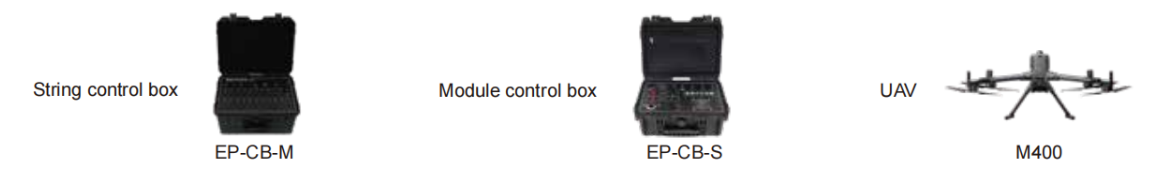

Accessories
