Type |
Night test |
Night test All-weather test |
||||
|
Model |
EP-N-2000 |
EP-N-2500 |
EP-N-4800 |
EP-D-130 |
EP-D-300 |
EP-D-500 |
|
Total Pixels |
20 million |
25 million |
48 million |
1.3 million |
3 million |
5 million |
|
Image Sensor |
Near-infrared enhanced high-precision imaging sensor |
InGaAs high-precision imaging sensor |
||||
|
Field of View |
46.3°×36° |
60.66°×46.5° |
46.3°×36° |
39.1°×29.8° |
||
|
Operating Environment |
Light/moonlight/starlight has no effect on detection |
Daylight, moonlight, starlight, and artificial light have no effect on the test; all-weather adaptable |
||||
|
Detection Speed |
Adjustable, 0.5s |
Adjustable, 80ms |
||||
|
Imaging Accuracy |
Clear imaging of micro-cracks under low current |
|||||
|
Video Detection |
Real-time video detection capable |
|||||
|
Transmission Method |
USB 3.0 |
|||||
|
Data Processing |
EL images support manual defect classification, AI defect classification, overall power station defect recording, and report generation functions |
|||||
|
Dimensions |
113*97*85mm |
|||||
|
Weight |
Less than 1KG |
|||||
|
Advantages |
Fast photo capture, customizable lens |
All-weather adaptable, customizable lens |
||||

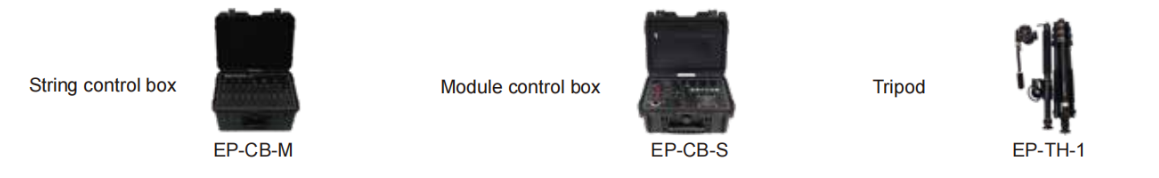

Accessories
